Split System Experts In The Bayside Area

We are able to install any split system within the home, Office or commercial premises Bayside & the greater Metropolitan Melbourne area You can buy your own or we can supply one for you.

Our technician is a fully licensed A grade electrician who is also licensed with the plumbing industry commission to install split systems. This means you only have to pay for one tradesman instead of two (a plumber and electrician are usually required). We are neat and tidy and pride ourselves on presentation and the quality of our work.

We established our electrical business Simon the Sparky in 2007. We branched out into SEAMS Split Systems and Electrical in 2011 after seeing a gap in the market for electricians who could also install split systems rather than just connecting them.

What is included in the Supply and Install of your unit :

Back to back install
What You Get

What is included in the Supply and Install of your unit :
New Interconnecting Control cables between indoor and outdoor unit
New 20/35 amp Isolator on the wall outside
New 2.5mm/6.0mm cables from Isolator to condenser
New concrete pavers, Feet or wall bracket to mount condenser on
New pair coil refrigerant pipes
New Drains from head units and Condensers outside to be drain in to down pipes or garden beds as per VBA regulations
Supply capping plastic off white to cover pipes and cables

Wire and Install new RCD safety switch in the switch board 16/20/25/32 amp
Seal and cover up external hole to comply with regulations
Leak test & Nitro pressure test both systems
Vac out Moisture present in the gas pipes
Test and commission unit on Heating /Cooling
Clean and wipe down all surfaces in compliance with Seams Covid Safe Plan
Supply Certificates on completion of works

What is a Split System?

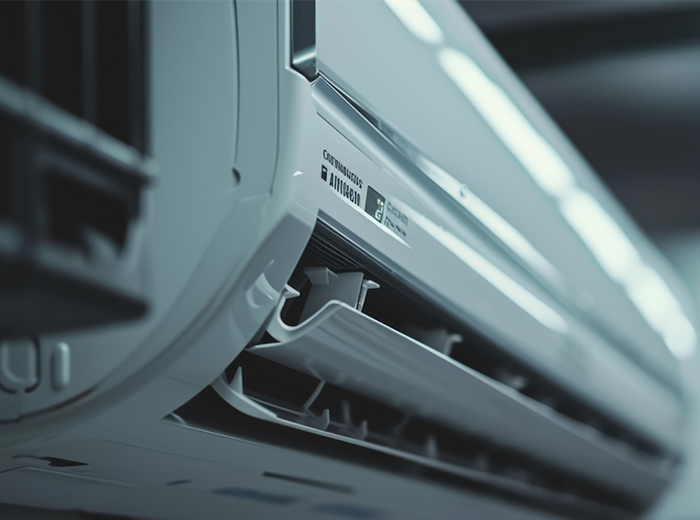

A split system is an air conditioner which has two parts. The indoor unit (the evaporator) and the outdoor unit (the condenser). The evaporator is mounted inside the room, and is connected by refrigeration piping to the condenser, which is mounted outside.

Split system air conditioners operate on a vapour compression refrigeration cycle. This is a thermodynamic process of refrigerant changing state (from a vapour to a liquid to a vapour again) which enables air conditioners to heat or cool.

Installation of Split Systems

The standard or base pricing that most installers work off is called back to back. This means that the head unit which is located inside on an external wall so that the pipes can be plumbed straight through to the exterior brick or weatherboard. The pipes and control wires and run down to the outside unit, there will also be a power isolator located next to the outside unit which will come directly from the switchboard on a separate circuit. The isolator is located next to the outdoor unit for service use/local isolation. Both the pipes and control wires on the outside wall will be covered in capping to protect them from weather and mechanical damage.

When looking directly at the inside head unit the pipes will come out on the right hand side travel straight down the outside wall and connect into the right hand side of the outdoor unit. This means the units are offset and not directly back to back top and bottom. The outside units are mounted either on concrete slabs or wall brackets both indoor and outdoor units have drains for condensation to escape, they are normally drained onto garden beds.

If you are building a new home or renovating we can install the pipes and cables in the wall at what is called “rough-in” stage as to conceal them behind the plaster, this is also a must if you are wanting to mount your split system on an internal wall.
